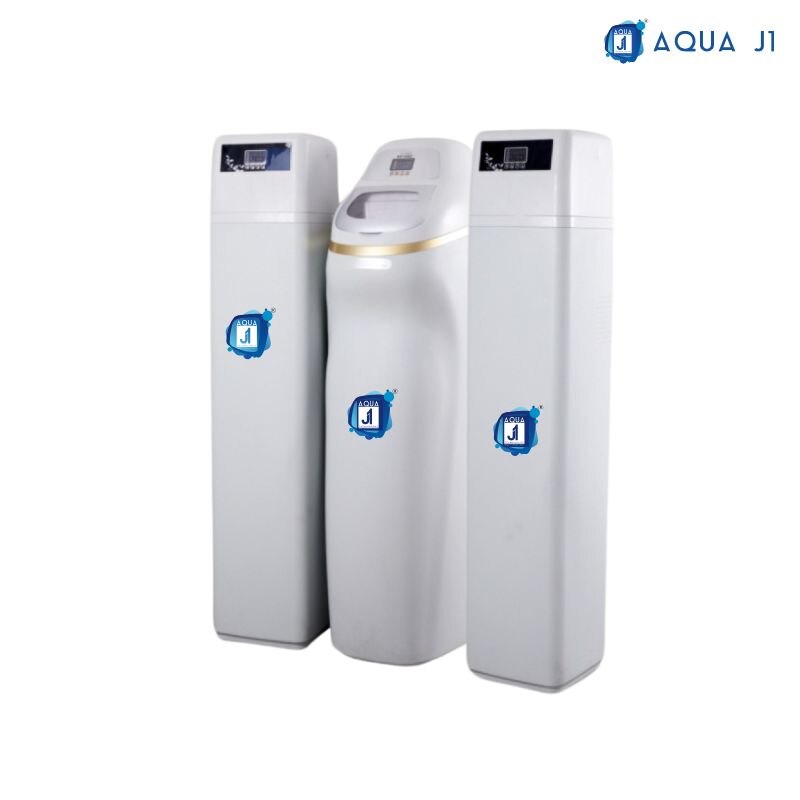

Aqua J1 Automatic Filter

Aqua J1 Automatic Filter

UNIQUE FEATURES

• Easy to install and ready to use

• Elegant designed, cabinet type water softener and Sand Filter

• Incorporated Sand filter prevents turbidity to improve efficiency of softener's resin as well as quality of water

• Fully automatic microprocessor-controlling operation

• Display Current time, remaining soft water & current flow

• Inbuilt brine tank, brine valve and float assembly

• BFT Technology helps to make fully automated operation with pump, water level controller and Softener

• Incorporated with pressure relief SV and sampling valve

• Can be use before and after soft water storage tank

• Can be use for individual Bunglow

Specification Filter + Softener Auto Filter C1044

Max. Flow Rate 3000Lph 3000Lph

OBSA ( Basis on 2000ppm) 69000 Ltr ………….

OBR ( Basis on 2000ppm) 11500 Ltr

Sand – Resin Tank Volume 50 Ltr 50 Ltr

Sand Quantity 30 Ltr 30 Ltr

Resin Quantity 46 Ltr

Salt Tank Volume 73 Ltr

Salt Required / Regeneration 7Kg

Salt Qty. ( OBSA ) / No’s of Reg 42 Kg/ 6

Working Pressure 0.15 – 0.6 Mpa 0.15 – 0.6 Mpa

Inlet – Outlet Size 1” 1”

Dimensions in mm L 700 X W 580 X 1310 L270 x W350 x H1310
